> >>>WS-C3850-48F-S Cisco Catalyst Switch

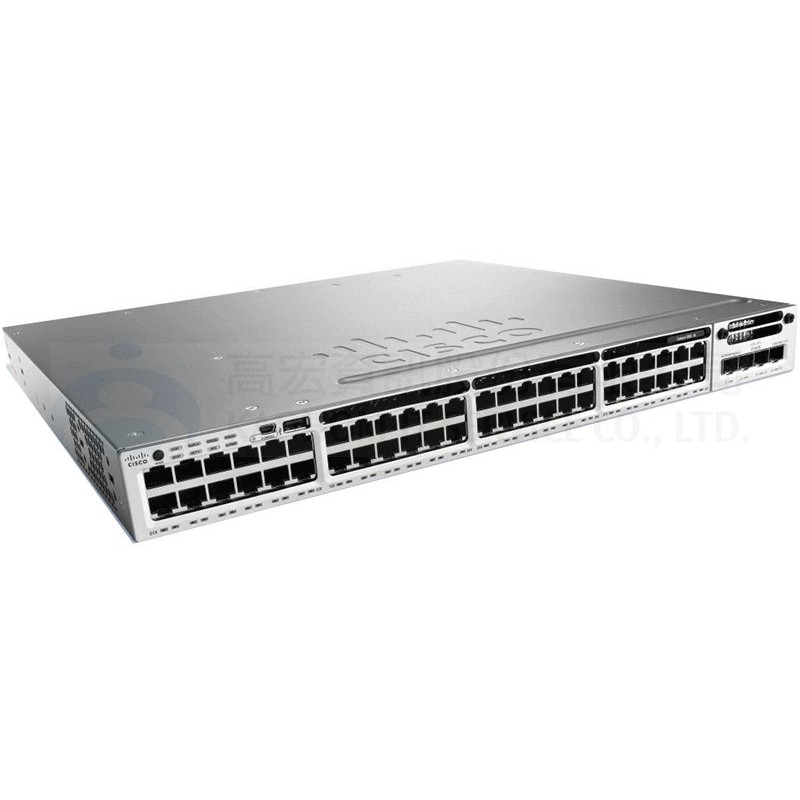

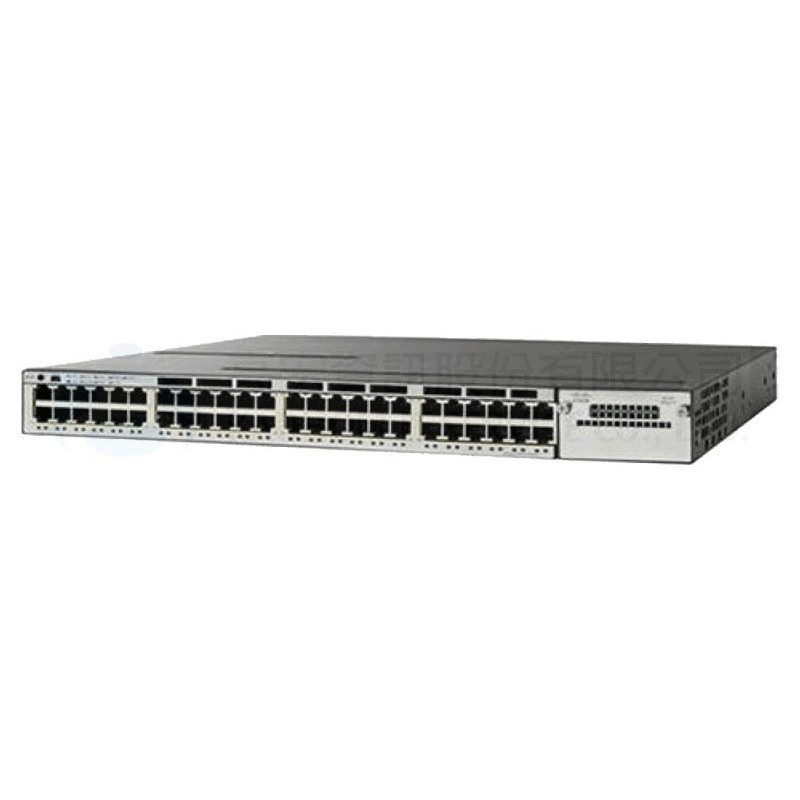

WS-C3850-48F-S Cisco Catalys C3850 48F-S Switch 查看大圖

WS-C3850-48F-S Cisco Catalyst Switch

13-2-3-9

新商品

  • Total Network Port: 48 x 10/100/1000(PoE+)
  • Total SFP Port: No
  • Network Chipset: Cisco Catalyst 3850 48 Port Full PoE IP Base
  • Managable: Yes
  • Network Layer: 3
  • Power Over Ethernet: 800W
  • Stackable: Stackable

更多資訊

by order

加購項目

必選。請詳細閱讀各項敘述。

  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000

  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務，等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務，需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000

  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

NT$ 225,000 未稅

新增至待購列表

商品規格

品牌 Cisco
連接埠數量 48 port
管理階級 layer 3
傳輸速率 Gigabit
PoE供電 有PoE
光籤模組 (SFP) 8 PORT 以上 SFP or SFP+

商品介紹

Cisco Catalys C3850 48F-S Switch 介紹

  • 48 * 10/100/1000 Ethernet ports with POE+
  • Up to 800W POE budget per switch and 30W per port
  • Network SFP uplink module selection: C3850-NM-4-1G OR C3850-NM-2-10G OR C3850-NM-4-10G
  • Dual redundant power module and three modular fans
  • IP Base IOS image with update option to IP service (L-C3850-48-S-E)
  • Layer 3 routing features: OSPF stub, EIGRP stub, RIPv1, v2, PIM stub
  • Up to 9 members stacking and up to 480Gbps of stack throughput
  • Up to 40G wireless bandwidth per switch, up to 50 APs and 2000 Wireless clients for each switching entity
  • Support Cisco Aironet 1040/1140/1260/1600/2600/3500/3600 series AP
  • 4GB memory (DRAM) and 2GB flash

Cisco next generation Catalyst WS-C3850-48F-S is integrated with 48 Ethernet POE+ ports stackable enterprise level switch with IP base IOS image. WS-C3850-48F-S supports up to 1K VLANs and delivers comprehensive layer 2 and limited layer 3 capabilities by offering the feasible solution for access layer or distribution layer. Cisco 3850 series combines both wired and wireless capability on a single platform. By activating the wireless functionality, wireless license is required: LIC-CTIOS-1A license for 1 access point. StackPower technology enables power stacking capacity in order to power redundancy among stack members. Network uplink modules enhance the flexibility for customer to choose network uplink connectivity. Flexible Netflow intelligence technology monitors every single flow on both wired and wireless users.


Cisco Catalys C3850 48F-S Switch 規格

Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 800 W
Performance Switching capacity : 176 Gbps
Stacking bandwidth : 480 Gbps
Capacity IPv4 routes : 24000
NetFlow entries : 48000
Switched virtual interfaces (SVIs) : 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 48 cm x 4.45 cm
Weight 8 kg
Manufacturer Warranty Limited lifetime warranty
Bundled Services Limited lifetime warranty
