> >>>WS-C3650-24PD-L Cisco Catalyst Switch
WS-C3650-24PD-L Cisco Catalyst 3560 24PD-L Switch 查看大圖

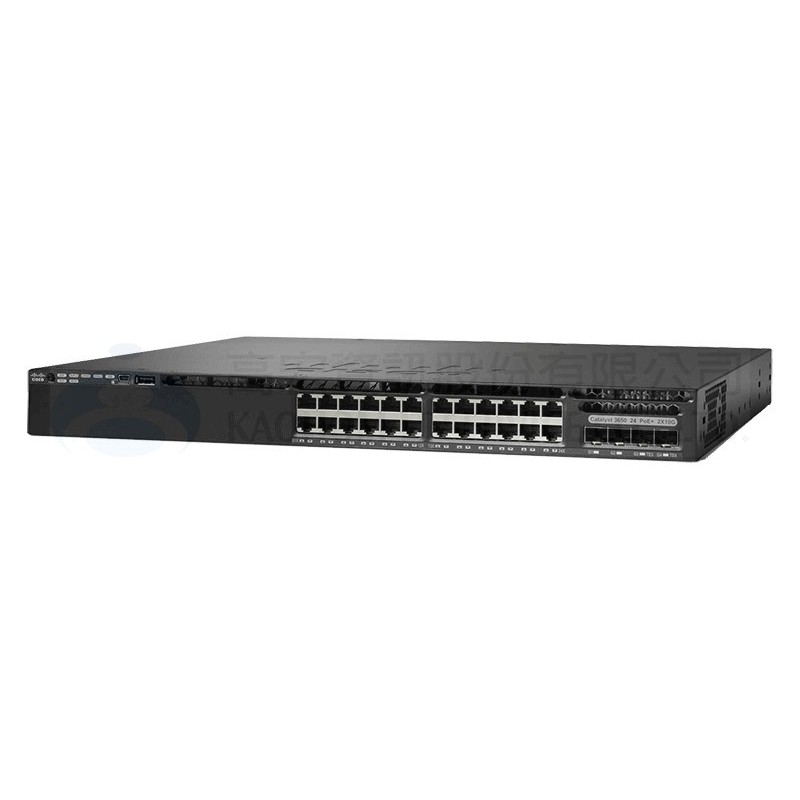

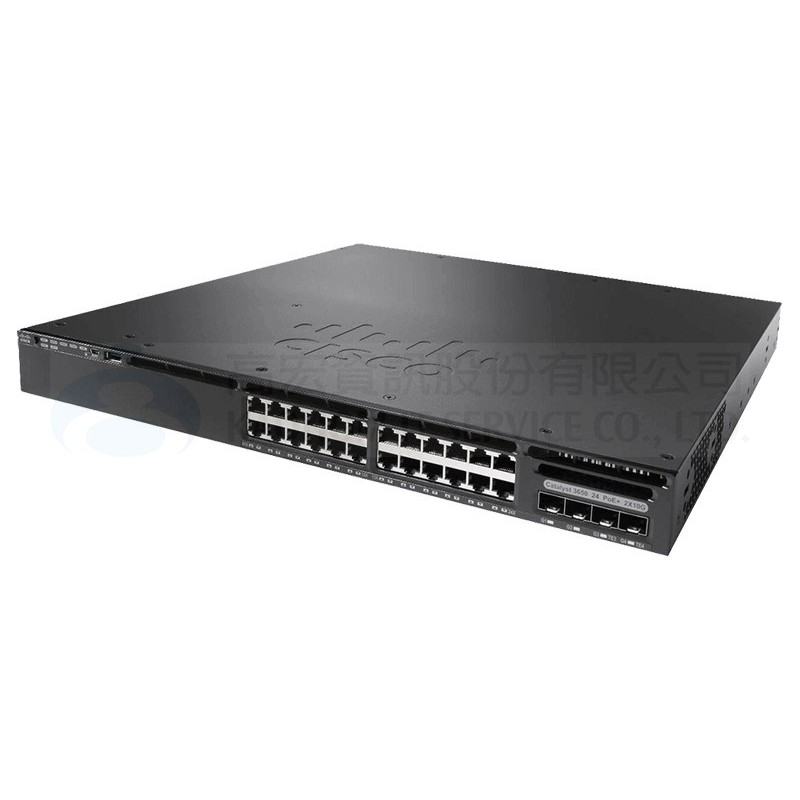

WS-C3650-24PD-L Cisco Catalyst Switch

13-2-3-5

新商品

  • Total Network Port: 24 x 10/100/1000
  • Total SFP Port: 2  x 10G SFP
  • Network Chipset: Cisco Catalyst 3650 24 Port PoE 2x10G Uplink LAN Base
  • Manageable: Yes
  • Network Layer: 3
  • Power Over Ethernet: 390W
  • Stackable: Stackable

更多資訊

by order

加購項目

必選。請詳細閱讀各項敘述。

  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000

  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務，等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務，需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000

  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

NT$ 129,800 未稅

新增至待購列表

商品規格

品牌 Cisco
連接埠數量 24 port
管理階級 layer 3
傳輸速率 Gigabit
PoE供電 有PoE
光籤模組 (SFP) 2 PORT SFP+

商品介紹

Cisco Catalyst 3560 24PD-L Switch 介紹

  • Converged wired plus wireless access
    The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and Flexible Netflow (FNF) across wired and wireless in a seamless fashion.
  • Cisco StackWise-160 technology
    Cisco StackWise-160 technology is built on the highly successful industry-leading StackWise technology, which is a premium stacking architecture. StackWise-160 has a stack bandwidth of 160 Gbps. StackWise-160 uses Cisco IOS software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an "active" switch elected by the member switches.
  • Efficient switch operation
    Cisco Catalyst 3650 series switch, designed and engineered by Cisco, provides optimum power-saving, EEE, low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco Catalyst 3650 ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state.
  • Environmentally responsible
    Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours. The integrated Wireless LAN controller avoids the deployment of additional devices in the network.
  • Network management tools
    The Cisco Catalyst 3650 series switch offers both a superior CLI for detailed configuration and Cisco Prime infrastructure for unified wired plus wireless management. Prime infrastructure provides day 0 and ongoing provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views and serves as the FNF collector for user traffic views.
  • Superior QoS
    The Cisco Catalyst 3650 series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.


Cisco Catalyst 3560 24PD-L Switch 規格

Device Type Switch - 24 ports - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 390 W
Performance Switching capacity : 88 Gbps
Forwarding performance : 65.47 Mpps
Capacity IPv4 routes : 24000
Virtual interfaces (VLANs) : 255
Switched virtual interfaces (SVIs) : 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 44.8 cm x 4.4 cm
Weight 7.26 kg
Manufacturer Warranty Limited lifetime warranty
Bundled Services Limited lifetime warranty
