> >>>1950-24G-2SFP+ -2XGT HP Switch( JG960A )

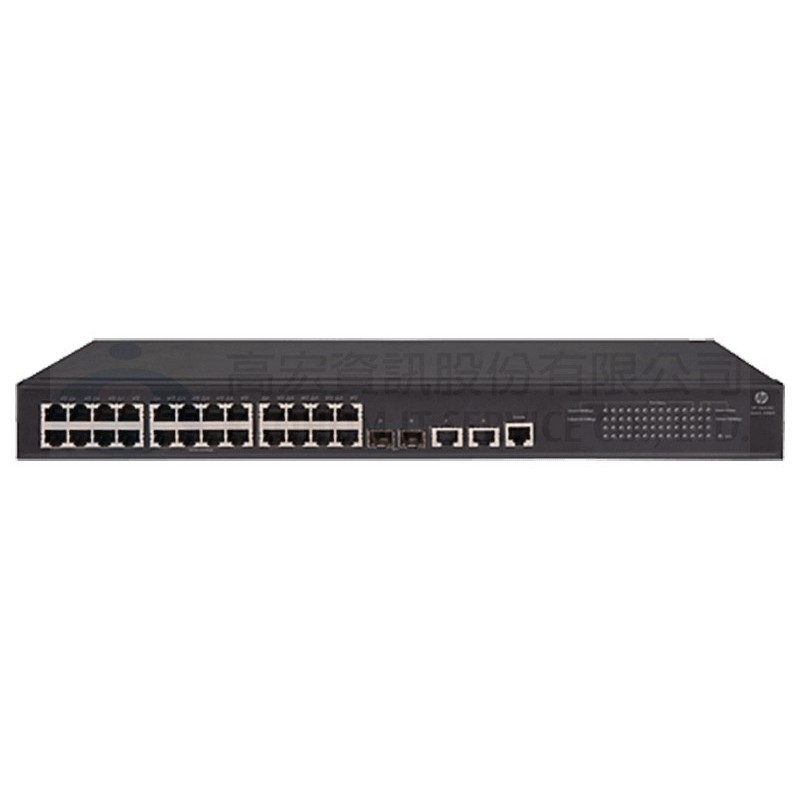

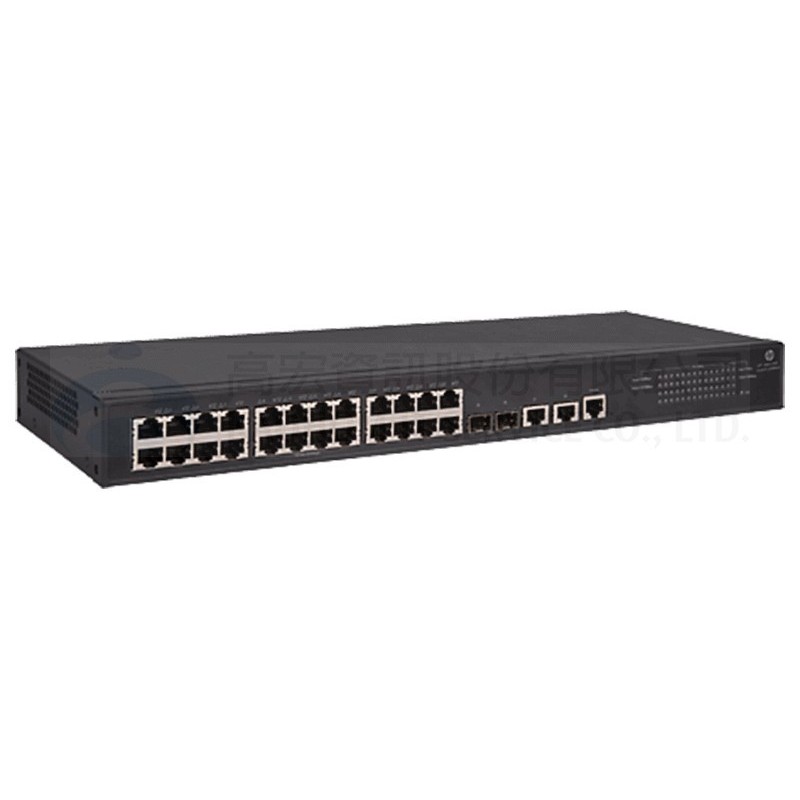

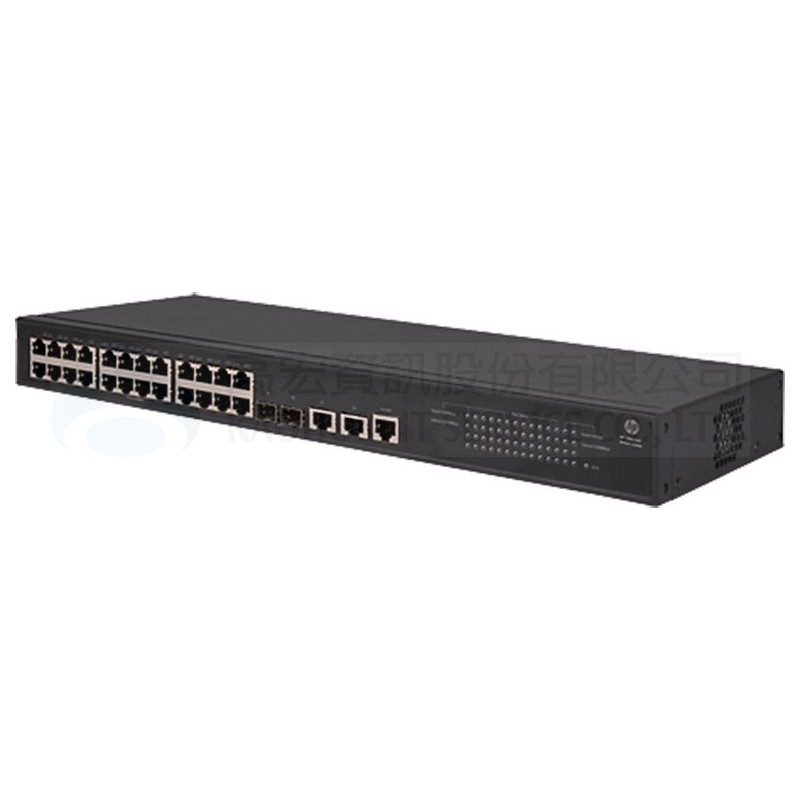

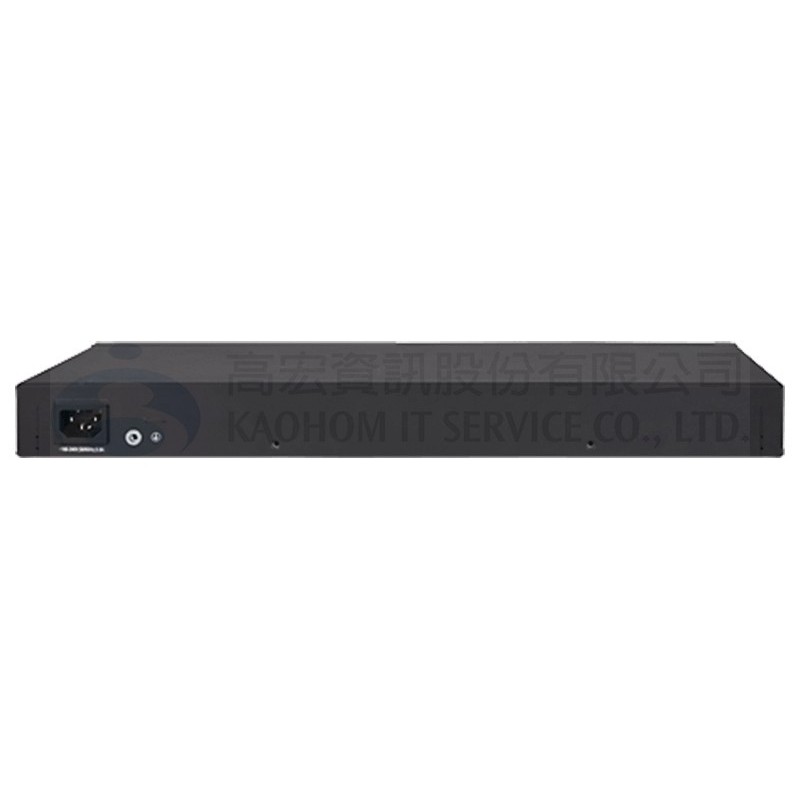

1950-24G-2SFP+ -2XGT HP Switch( JG960A ) 查看大圖
上一步 下一步

1950-24G-2SFP+ -2XGT HP Switch( JG960A )

13-1-3-2

新商品

加購項目

必選。請詳細閱讀各項敘述。

  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000

  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務，等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務，需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000

  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

新增至待購列表

商品規格

品牌 HP
連接埠數量 24 port
管理階級 layer 3
傳輸速率 Gigabit
PoE供電 無PoE
光籤模組 (SFP) 2 PORT SFP+

商品介紹

HP 1950-24G 產品介紹

he HP 1950 Switch Series is a family of smart web-managed Gigabit switches with 10GbE uplinks for small business customers needing advanced high-performance connections. The series has 2 standard and 2 PoE+ models, 24- and 48-GbE ports, each with 2 10GBASE-T and 2 10G SFP+ high-bandwidth ports.

True stacking of as many as 4 devices allows them to be logically administered as a single entity. The switches support Layer 3 static routing on IPv4 and IPv6.

Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.

功能

High-level Gigabit with 10GbE Networking for Advanced Small Businesses.

Each model of the HP 1950 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.

Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.

Two SFP+ ports allow for fiber connectivity at various distances, at 1/10GbE speeds, using optional SFP+ 10GbE or SFP Gigabit transceivers.

Aggregate 10GbE connections for even higher bandwidth using Link Aggregation Control Protocol.

簡化的網路管理

Logically group or "stack" as many as four units of the HP 1950 Switch Series and manage this as a single entity, greatly simplifying network administration. Interconnect stacked units using 10GbE connections, with as much as 40GbE total stacking bandwidth connecting the units.

使用直覺式的以網頁瀏覽器為基礎的介面設定和管理這些智慧型網管裝置。

These devices support SNMP versions 1, 2c and 3, allowing administration of these devices from a remote SNMP-based management platform.

網路時間通訊協定能促進整個網路的時間記錄，讓以時間為基礎的動作和疑難排解記錄檔都維持同步。

設備會自動從 DHCP 伺服器擷取 IP 位址，實現近乎隨插即用的部署。

健全的安全性，確保您的網路安全無虞

The HP 1950 Switch Series lets you use Virtual LANs and access control lists to set bounds on what data can be seen by which users.

Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.

多種功能可保護您的網路安全，避免使用者或伺服器詐騙以及以網路為基礎的惡意攻擊。

Help secure management traffic using supported SSL/HTTPS encryption and SNMPv3 capabilities.

彈性的功能，讓您的網路持續保持運作

The HP 1950 Switch Series supports Spanning Tree Protocol, Rapid Spanning Tree Protocol, and Multiple Spanning Tree Protocol standards for creating hot-standby recovery links.

Distribute important links across multiple units in a logical stack for added resiliency. Units can even be in different buildings and still be logically stacked.

裝置支援在設備升級期間使用兩個獨立的主要和次要作業系統快閃映像檔案進行備份和復原。

Power over Ethernet (PoE) models can be paired with an optional Redundant Power System which can maintain power even if the unit's power supply fails, as well as supplement available PoE power up to 780 Watts.

HP 1950-24G  產品規格

Interfaces/Ports
Modular No
Total Number of Network Ports 26
Port/Expansion Slot Details
  • 24 x Gigabit Ethernet Network
  • 2 x 10 Gigabit Ethernet Network
  • 2 x 10 Gigabit Ethernet Expansion Slot
General Information
Product Type Ethernet Switch
Product Name 1950-24G-2SFP+-2XGT Switch
Manufacturer Part Number JG960A
Manufacturer Hewlett Packard Enterprise
Product Model 1950-24G-2SFP+-2XGT
Product Series 1950
Brand Name HP
Physical Characteristics
Weight (Approximate) 6.61 lb
Compatible Rack Unit 1U
Height 1.7"
Width 17.2"
Depth 6.3"
Form Factor Rack-mountable
Warranty
Limited Warranty Lifetime
Power Description
Power Source Power Supply
Management & Protocols
Manageable Yes
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 3
Media & Performance
Network Technology
  • 10/100Base-TX
  • 10/100/1000Base-T
  • 10GBase-T
  • 10GBase-X
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Media Type Supported
  • Twisted Pair
  • Optical Fiber
