| 品牌 | Cisco |
| 連接埠數量 | 48 port |
| 管理階級 | layer 3 |
| 傳輸速率 | Gigabit |
| PoE供電 | 無PoE |
| 光籤模組 (SFP) | 2 PORT SFP+ |

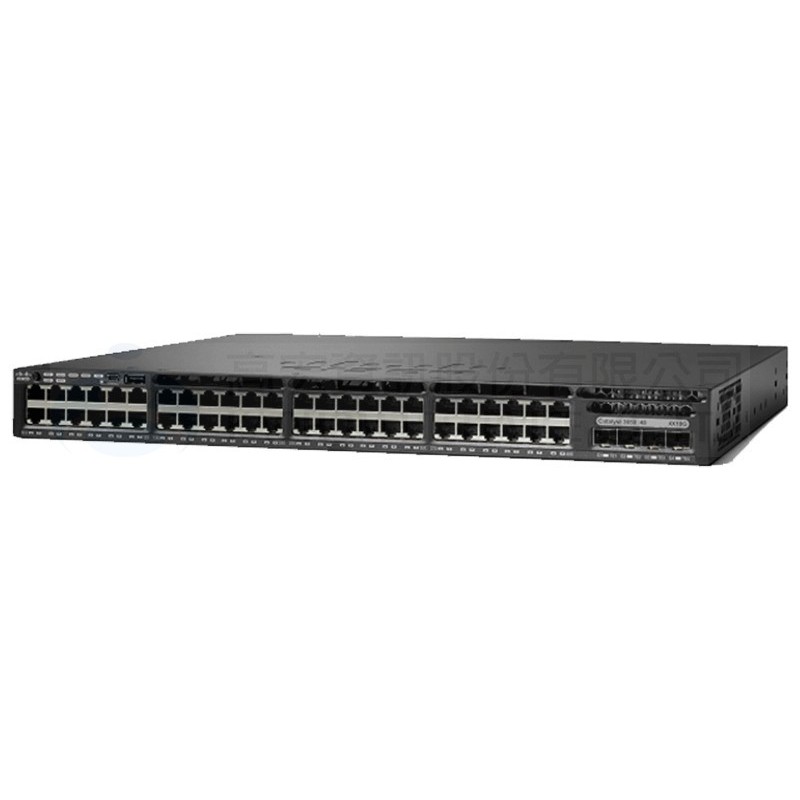

Cisco Catalyst WS-C3650-48TD-L is next generation of enterprise-level stackable access layer switch and integrates with 48 Gigabit Ethernet ports and 2 fixed 10G SFP+ or 4 * 1G SFP uplink ports in LAN base feature set. Catalyst 3650 series provide full convergence between wired and wireless on a single platform. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management by using a single IP address. For stacking purpose, stack modules are required; in addition, LAN base feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, IP base license or IP service license is necessary.
| Cisco catalyst 3650-48TD-L Specifications | ||
| Model Info | WS-C3650-48TD-L | |
| Enclosure Type | Rack-mountable - 1U | |
| Ports | 48 x 10/100/1000 + 2 x 10G SFP+ | |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
|
| Available PoE Power | None | |
| Switching Capacity | 176Gbps | |
| Maximum stacking number | 9 | |
| Stack Bandwidth | 160Gbps | |
| Forwarding Performance | 104.16Mpps | |
| FNF entries | disabled (IP base license required) | |
| Maximum VLANs IDs | 255 | |
| MAC Address Table Size | 32K | |
| CPU | Multicore CPU | |
| RAM | 4 G | |
| Flash Memory | 2 G | |
| Wireless | ||
| Number of AP per switch/stack | 25 | |
| Number of wireless clients per switch/stack | 1000 | |
| Total number of WLANs per switch | 64 | |
| Wireless bandwidth per switch | up to 40Gbps | |
| Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 | |
| Expansion / Connectivity | ||
| Console ports | USB (Type-B), Ethernet (RJ-45) | |
| Expansion Slot(s) | power redundant slot | |
| Accessory & Rack Moubt Kits | ●ACC-KIT-T1: Accessory kit ●RACK-KIT-T1: Rack mount kit ●4PT-KIT-T1:Extension rails and brackets for four-point mounting |
|
| Stacking module & cable | ●C3650-STACK-KIT: Stack Module ●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length ●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length ●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
|
| Power supply | PWR-C2-250WAC | |
| Power Device | Power supply - redundant - plug-in module | |
| Power Redundancy | optional | |
| Voltage range (Auto) | 100V-240V | |
| Power Consumption of standalone (in Watts) | 93.9 (max) | |
| Miscellaneous | ||
| Width | 17.5 Inches (44.5 Cm) | |
| Depth | 17.625 Inches (44.8 Cm) | |
| Height | 1.73 Inches (4.4 Cm) | |
| Weight | 15.90 Pounds (7.21Kg) | |
| Rack Mounting Kit | optional | |
| MTBF in hours | 527,580 | |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1X-Rev ●IEEE 802.11 ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 |
| System software / license | ||
| System software | IOS LAN Base (Upgradable) | |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 | |
| Software license | ●C3650-48-L-S : LAN Base to IP Base RTU paper license ●C3650-48-L-E: LAN Base to IP Services RTU paper license ●L-C3650-48-L-S: LAN Base to IP Base RTU electronic license ●L-C3650-48-L-E: LAN Base to IP Services RTU electronic license |
|
| Access Point Licenses | ●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
|
| features | ●SVIs ●RPS Support ● Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2,V3 ●CDPv2●LLDP ● 802.3ad LACP ●Ingress policing●SPAN & RSPAN● PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ● port CoS Trust and Override ●IP address DHCP ●Trusted Boundary ● ACL Classification●PAGP+ for VSS ● 802.1p queues●Port Cos Trust and Override ●Per-Vlan policy ●Scheduling ●Ingress policing ● storm control● Configure CoS Priority Queues ●Configure CoS Priority Queues ●priority Queuing●AutoQoS ● Configure Queue Weights ●Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● DSCP transparency ●DSCP trust | |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ●User authentication ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, SSL, HTTPS SCP ●Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ●Private Vlans edge ● TACACS+ and RADIUS authentication ● Bridge protocol data unit (BPDU) Guard and Root Guard ● Spanning Tree Root Guard (STRG) ●DHCP server |
|
| Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-BRIDGE-EXT-MIB ●CISCO-IP-URPF-MIB ●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB ●CISCO-CALLHOME-MIB ●CISCO-CIRCUIT-INTERFACE-MIB ●CISCO-ENTITY-VENDORTYPE-OID-MIB ●CISCO-CONTEXT-MAPPING-MIB ●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB ●CISCO-EMBEDDED-EVENT-MGR-MIB ●CISCO-ENTITY-FRU-CONTROL-MIB●CISCO-ENTITY-SENSOR-MIB ●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB ●CISCO-CONFIG-COPY-MIB ●CISCO-FTP-CLIENT-MIB ●CISCO-IF-EXTENSION-MIB ●CISCO-CONFIG-MAN-MIB ●CISCO-PRIVATE-VLAN-MIB ●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB ●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB ●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB●CISCO-PING-MIB |
●CISCO-PORT-SECURITY-MIB ●CISCO-PRODUCTS-MIB●CISCO-RTP-METRICS-MIB●CISCO-RTTMON-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB●CISCO-SYSLOG-MIB●CISCO-TCP-MIB ●CISCO-UDLDP-MIB ●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB●CISCO-VTP-MIB ●EtherLike-MIB ●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB ●IF-MIB ●LLDP-EXT-MED-MIB ●LLDP-MIB ●NOTIFICATION-LOG-MIB ●OLD-CISCO-MEMORY-MIB●CISCO-CDP-MIB ●RMON2-MIB ●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB ●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB ●SNMP-VIEW-BASED-ACM-MIB ●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service● Cisco Focused Technical Support Services | |
| Environmental Ranges | ||
| Fahrenheit | Centigrade | |
| With AC power supply Operating environment and altitude |
||
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF | -5ºC to +40ºC |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45ºC |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF | -5ºC to 50ºC |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF | -5ºC to 45ºC |
| With DC power supply Operating environment and altitude (NEBS) |
||
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF | -5ºC to +40ºC |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF | -5ºC to 35ºC |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF | -5ºC to +55ºC |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF | -5ºC to +50ºC |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45º |
| Storage environment | -40ºF to 160ºF | -40ºC to 70ºC |
| Feet | Meters | |
| Operating altitude | Up to 16,400 | Up to 5000m |
| Storage altitude | Up to 16,400 | Up to 5000m |
| Operating relative humidity | 5% to 96% noncondensing | |
| Storage relative humidity | 5% to 96% noncondensing | |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45º |
| Storage environment | -40ºF to 160ºF | -40ºC to 70ºC |
| Feet | Meters | |
| Operating altitude | Up to 13,000 | Up to 4000m |
| Storage altitude | Up to 15,000 | Up to 4573m |
| Operating relative humidity | 10% to 95% noncondensing | |
| Storage relative humidity | 10% to 95% noncondensing |
|
