Catalyst 2960 Plus 24 10/100 PoE + 2 T/SFP LAN Base
by order
| 品牌 | Cisco |
| 連接埠數量 | 24 port |
| 管理階級 | layer 2 |
| 傳輸速率 | 10Mbps / 100Mbps |
| PoE供電 | 有PoE |
| 光籤模組 (SFP) | 2 PORT SFP |

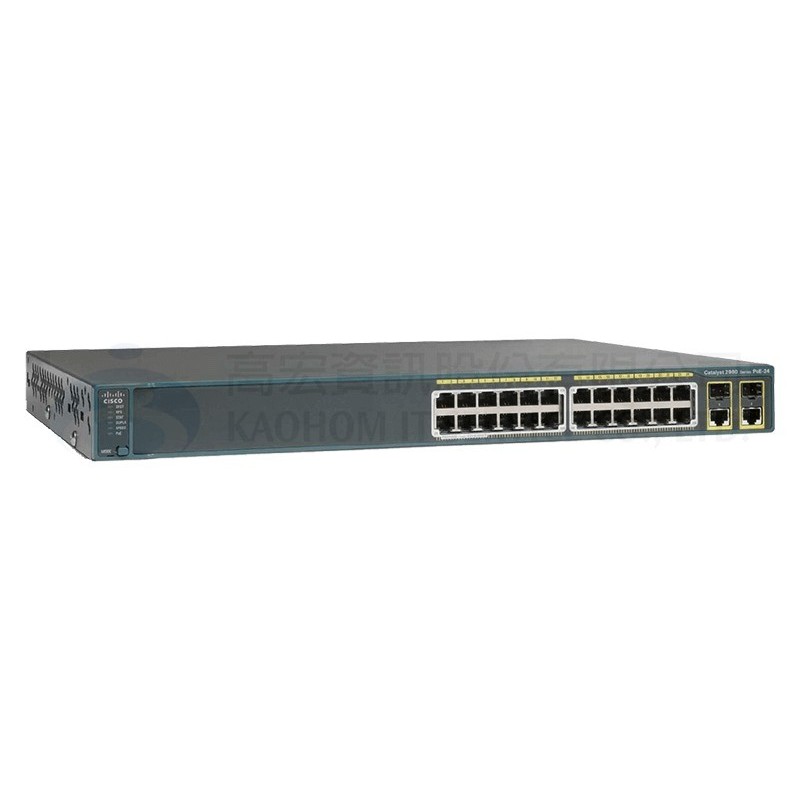

The WS-C2960-24PC-L product is basically a Cisco Catalyst Switch. The C2960 tells that it belongs in the 2900 Catalyst Series where the C stands for Catalyst. Also the 24PC indicates that it is a 24 Port Switch with Power over Ethernet capability. In addition the L indicates that it is a LAN based switch.
The Cisco Catalyst 2900 Series WS-C2960-24PC-L Switch is a special switch designed by Cisco System to display unimaginable performance and quality at an affordable price. It offers up to 24 ports for the business allowing it to be integrated into any network quickly and easily. This Switch offers a wide range of software features to provide ease of operation, secure business operations as well as sustainability and a borderless networking experience. In addition enhanced troubleshooting for problem solving including link connectivity and cable diagnostics makes the switch a must have for any business. This switch also employs certain Cisco Software for added performance boost like Cisco EnergyWise Technology and Cisco Smart Install software. Advanced Quality of Insurance, fast and efficient connectivity and low power consumption are the highlights of this device.
This Cisco Switch due to its enhanced features is best utilized in office branch networks, in entry level businesses who are just starting their business operations or in mid markets business who do not possess an excessively large network.
| Specification | |
| Manufacturer | Cisco |
| Manufacturer Part # | WS-C2960-24PC-L |
| Product Description | Cisco Catalyst 2960-24PC-L - switch - 24 ports - Managed - rack-mountable |
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 (PoE) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching capacity : 32 Gbps ¦ Forwarding performance (64-byte packet size) : 6.5 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.5 cm x 33.2 cm x 4.4 cm |
| Weight | 5.45 kg |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable - 1U |
| Encryption Algorithm | SSL |
| Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) |
| Flash Memory | 32 MB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity : 32 Gbps ¦ Forwarding performance (64-byte packet size) : 6.5 Mpps |
| Ports | 24 x 10/100 (PoE) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| RAM | 64 MB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Status Indicators | Link activity, port transmission speed, port duplex mode, power, link OK, system |
| Subtype | Fast Ethernet |
| Dimensions & Weight | |
| Depth | 33.2 cm |
| Height | 4.4 cm |
| Weight | 5.45 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces | 24 x 100Base-TX - RJ-45 - PoE ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
| MTBF | 311,781 hours |
| Rack Mounting Kit | Optional |
| Power | |
| Power Consumption Operational | 45 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Software / System Requirements | |
| Software Included | Cisco LAN Base software |
