降價! Juniper EX4300-24T Layer 3 Switch 查看大圖

EX4300-24T Juniper Layer 3 Switch

13-4-1-1

新商品

  • 24 fully configurable 10/100/1000Mbs RJ45 Ethernet ports
  • IEEE 802.3af & at standards for up to 30 watts of power per port
  • 4 dual purpose 40Ge ports,40Ge ports require QSFP+
  • 4 x 1Ge or 10Ge SPF uplink ports
  • 32,000 routes

更多資訊

by order

加購項目

必選。請詳細閱讀各項敘述。
  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000
  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務,等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務,需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000
  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

NT$ 218,190 未稅

-30%

NT$ 311,700 未稅

新增至待購列表

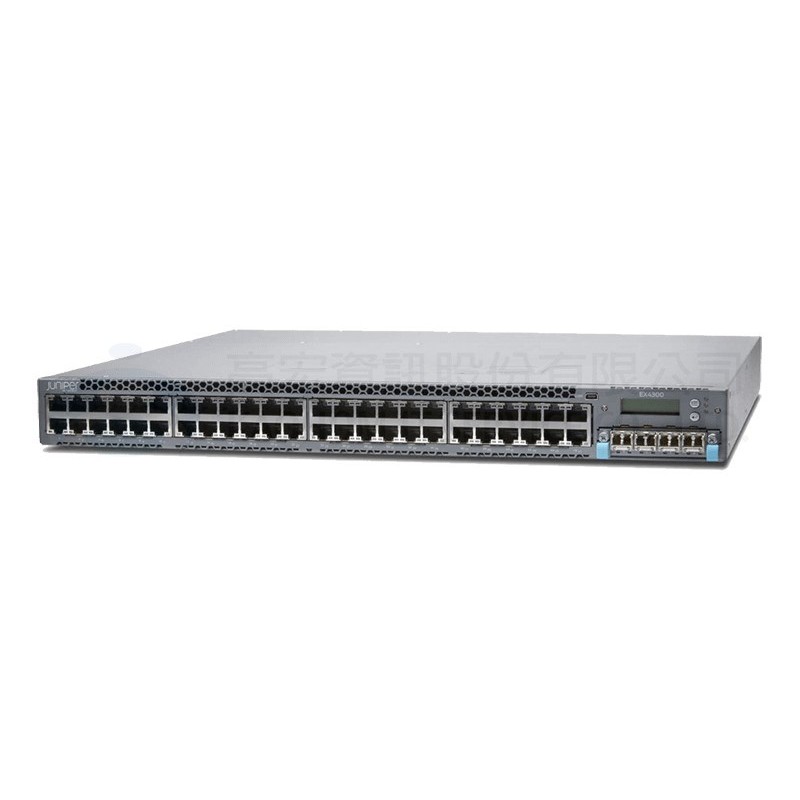

Juniper EX4300-24T 產品介紹

The Juniper Networks EX4300-24T is a member of the EX4300 virtual chassis switch series. A step up from the EX3300, this is a top-end, stack-able, network switch with advanced routing features. It is designed to run in a rack and can operate as an access or distribution layer device, but thrives when collapsing the two topologies together. Advanced functionality in the form of Virtual Chassis, OSPF, BGP and redundant trunk groups means the system is highly fault tolerant. It is a high quality 1U rack mount unit (delivered complete with mounting "ears") with 24 built-in RJ45 ports and 4 x 40Ge uplink ports (separate purchase QSFP+ optics required).

This great value switch has many of the features of high-end chassis systems, providing the following benefits:

  1. It is managed so you can build segmented networks for better performance and security.
  2. Create resilient systems using Virtual Chassis technology:
    • You can improve resilience by spanning connections to critical servers across multiple chassis members
    • You can grow network capacity without the need to separately manage each unit - thus saving cost
  3. The EX4300-24T supports advanced routing features such as OSPF - to provide resilience between distribution layer devices and the core

The technical stuff

The EX4300-24T has 24 Gigabit ethernet ports. These support multiple encapsulations including - L2, L3 VLAN's and (LACP) aggregated interfaces. It is high performance; supporting packet switching capacity at 448 Gbps, more than 4000 VLANS, multicast and other advanced network functions. It is also highly secure and supports access control lists (ACL), MAC and other security controls. Together with the dedicated management port, the system can be fully secured.

The EX4300-24T also provides advanced stateless firewall functions. You can specify QoS settings such as bandwidth control and traffic queuing and priority - this means VoIP and other specialised types of traffic can be easily accommodated.

The EX4300-24T supports sFlow & RPM (Real-time response time monitoring) that allows detailed performance monitoring of traffic to ensure that your network is operating at maximum efficiency and, should any occur, problems can quickly be isolated and resolved.

Juniper EX4300-24T 產品規格

Dimensions
(W x H x D) 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit

Backplane Speed
320 Gbps (Virtual Chassis)

Data Rate
448 Gbps

Throughput
333 Mpps (wire speed)

10/100/1000BASE-T Port Densities
24, up to 240 in Virtual Chassis configuration

100BASE-FX / 1000BASE-X (SFP) Port Densities
4 per switch (via optional four-port GbE uplink module), up to 40 in Virtual Chassis configuration

10GBASE-X Port Densities
4 per switch (via optional four-port 10GbE uplink module), up to 40 in Virtual Chassis configuration

40GBASE QSFP+ Port Densities
4 per switch (built-in), up to 40 in Virtual Chassis configuration

100GBASE CFP Port Densities
N/A

Resiliency
Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Route Engine switchover (GRES) in Virtual Chassis configuration

Power Options
AC: 350W (715W and 1100W optional), autosensing; 100-120V / 200-240V; dual load-sharing hot-swappable internal redundant power supplies
DC: 550W: input voltage range 36V-72V; dual input feed, dual load-sharing hot-swappable internal redundant power supplies

Operating System
Junos

Traffic Monitoring
sFlow

QoS Queues / Port
12

MAC Addresses
64,000

Jumbo Frames
9,216 Bytes

IPv4 Unicast / Multicast Routes
32,000 / 8,000

IPv6 Unicast / Multicast Routes
18,000 / 4,000

Number of VLANs
4,093

ARP Entries
64,000

Warranty
Limited lifetime switch hardware warranty

品牌 Juniper
連接埠數量 24 port
管理階級 layer 3
傳輸速率 Gigabit
PoE供電 無PoE
光籤模組 (SFP) 4 PORT SFP+
