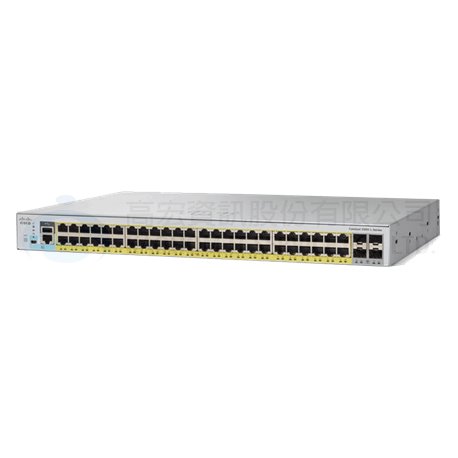

WS-C2960L-48PS-AP Cisco Catalyst Switch 查看大圖

WS-C2960L-48PS-AP Cisco Catalyst Switch

WS-C2960L-48PS-AP

新商品

by order

加購項目

必選。請詳細閱讀各項敘述。
  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000
  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務,等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務,需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000
  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

NT$ 49,885 未稅

新增至待購列表

Cisco Catalyst 2960-L Switch 介紹

Cisco Catalyst® 2960L-48PS-AP PoE Switch (2960-L Series Switches) are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications.

Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features.

Cisco Catalyst 2960-L switches feature:
● 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
● 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
● Power over Ethernet Plus (PoE+) support with up to 370W of power budget
● Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
● Higher mean time between failure (MTBF) because they have no moving mechanical parts
● Less than 11.5-inch depth fit in use cases with space limitation
● Reduced power consumption and advanced energy management features
● RJ45 and USB console access for simplified operations
● Intuitive web UI for easy deployment and management
● Cisco IOS® Software features
● Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement

Cisco Catalyst WS-C2960L-48PS-AP Switch 規格

Configurations

10/100/1000 Ethernet Ports

48

Uplink Interfaces

4 SFP

Available PoE Power

370W

Fanless

N

Dimensions (H x D x W)

1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm)

Net Weight

10.25 lb (4.65 kg)

Console Ports

RJ45 Ethernet

1

USB mini-B

1

USB-A port for storage and Bluetooth console

1

Memory and Processor

CPU

ARMv7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

52 Gbps

Switching bandwidth

104 Gbps

Forwarding rate (64-byte L3 packets)

77.38 Mpps

Unicast MAC addresses

8K

Maximum active VLANs

64

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions

1

MTU-L3 packet

9198 bytes

Jumbo Ethernet frame

10,240 bytes

MTBF in hours (Data)

1,370,769

MTBF in hours (PoE)

437,970

Environment

Operating temperature

Up to 5,000 ft

23ºF to 113ºF (–5ºC to 45ºC)

Up to 10,000 ft

23ºF to 104ºF (–5ºC to 40ºC)

Operating altitude

10,000 ft (3000m)

Operating relative humidity

5% to 90% at 40ºC

Storage temperature

–13º to 158ºF (–25º to 70ºC)

Storage altitude

15,000 ft (4500m)

Storage relative humidity

5% to 95% at 65ºC

Storage altitude

Minimum ambient temperature for cold start is 0°C (32°F)

Electrical

PoE

Voltage (autoranging)

110 to 220V AC in

Frequency

50 to 60 Hz

Current

0.37A to 0.64A

Power rating (maximum consumption)

0.48 kVA

Power consumption (watts)

       0% traffic

       10% traffic

       100% traffic

       Weighted average



68.4

81.6

81.9

77.3

Safety and Compliance

Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

EMC: emissions

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

EMC: immunity

EN55024, CISPR24, EN300386, KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco

Common Language Equipment Identifier (CLEI) code

U.S. government certifications

USGv6 and IPv6 Ready Logo

Connectors and Interfaces

Ethernet interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs

Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet



品牌 Cisco
連接埠數量 48 port
管理階級 無網管
傳輸速率 Gigabit
PoE供電 有PoE
光籤模組 (SFP) 4 PORT SFP
